About Your Monitor

Dell™ U2410 Flat Panel Monitor User's Guide

  Package Contents

  Product Features

  Identifying Parts and Controls

  Monitor Specifications

  Universal Serial Bus (USB) Interface

  Card Reader Specifications

  Plug and Play Capability

  LCD monitor Quality and Pixel Policy

  Maintenance Guidelines






Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.


NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

  • Monitor
  • Stand

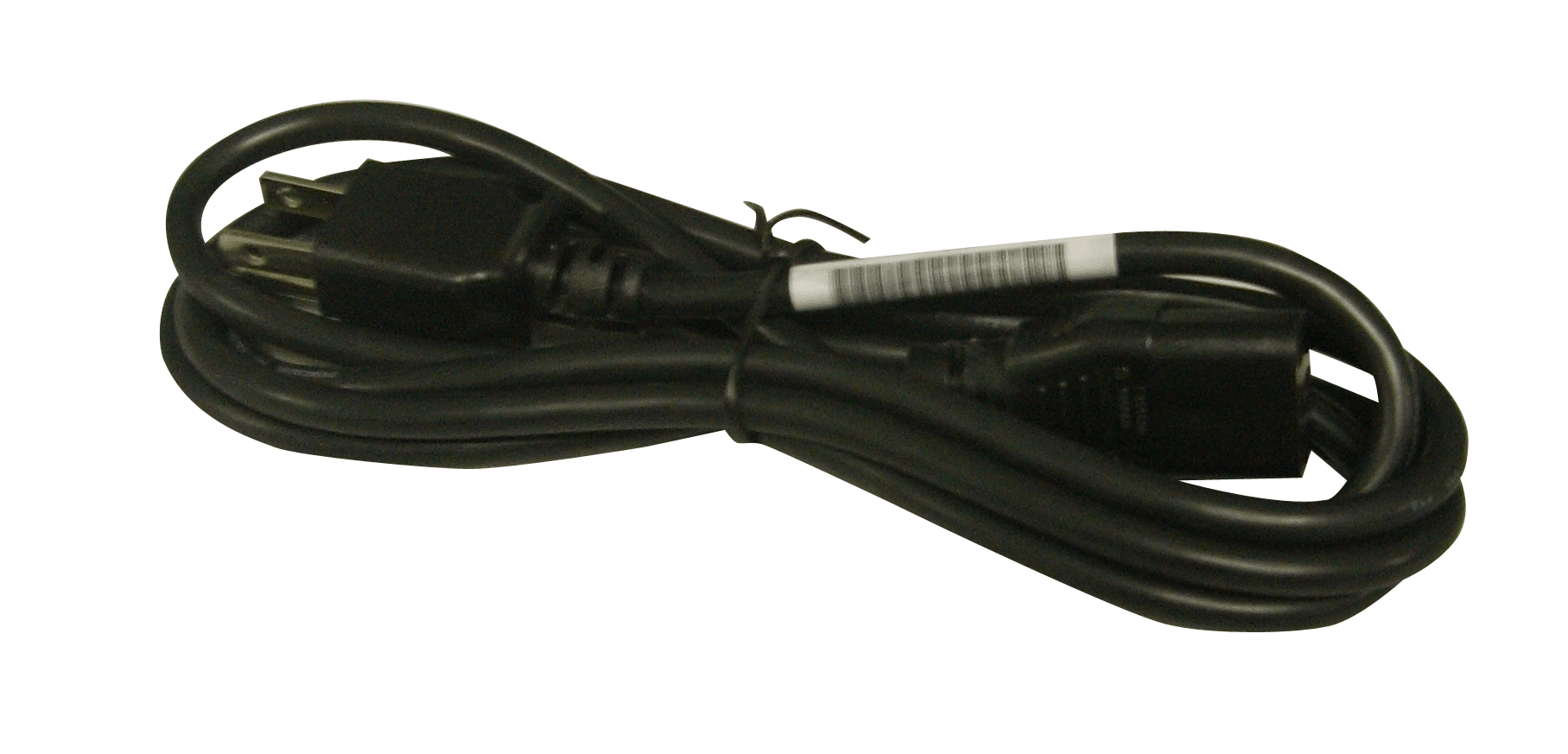

  • Power Cable

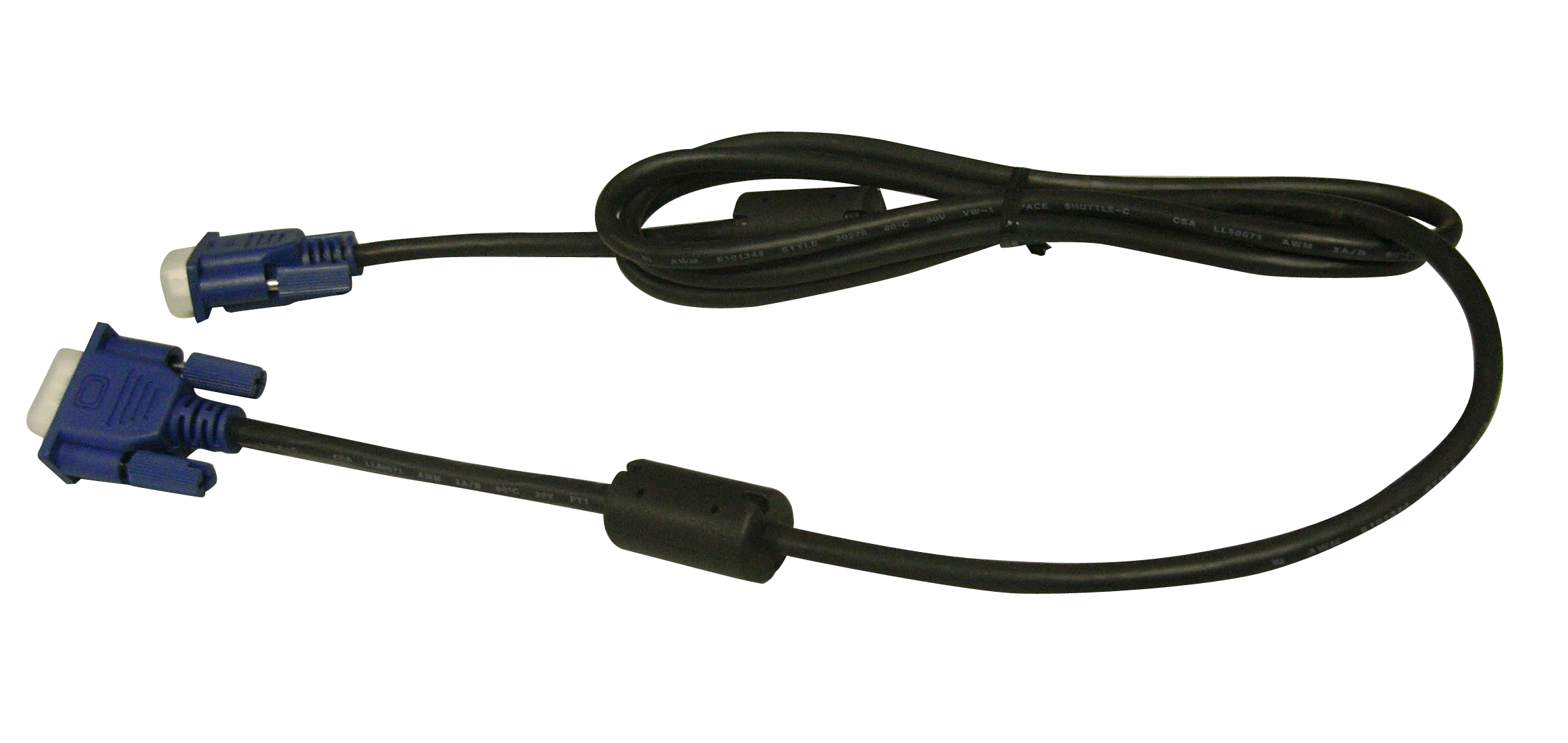

  • VGA Cable (attached to the monitor)

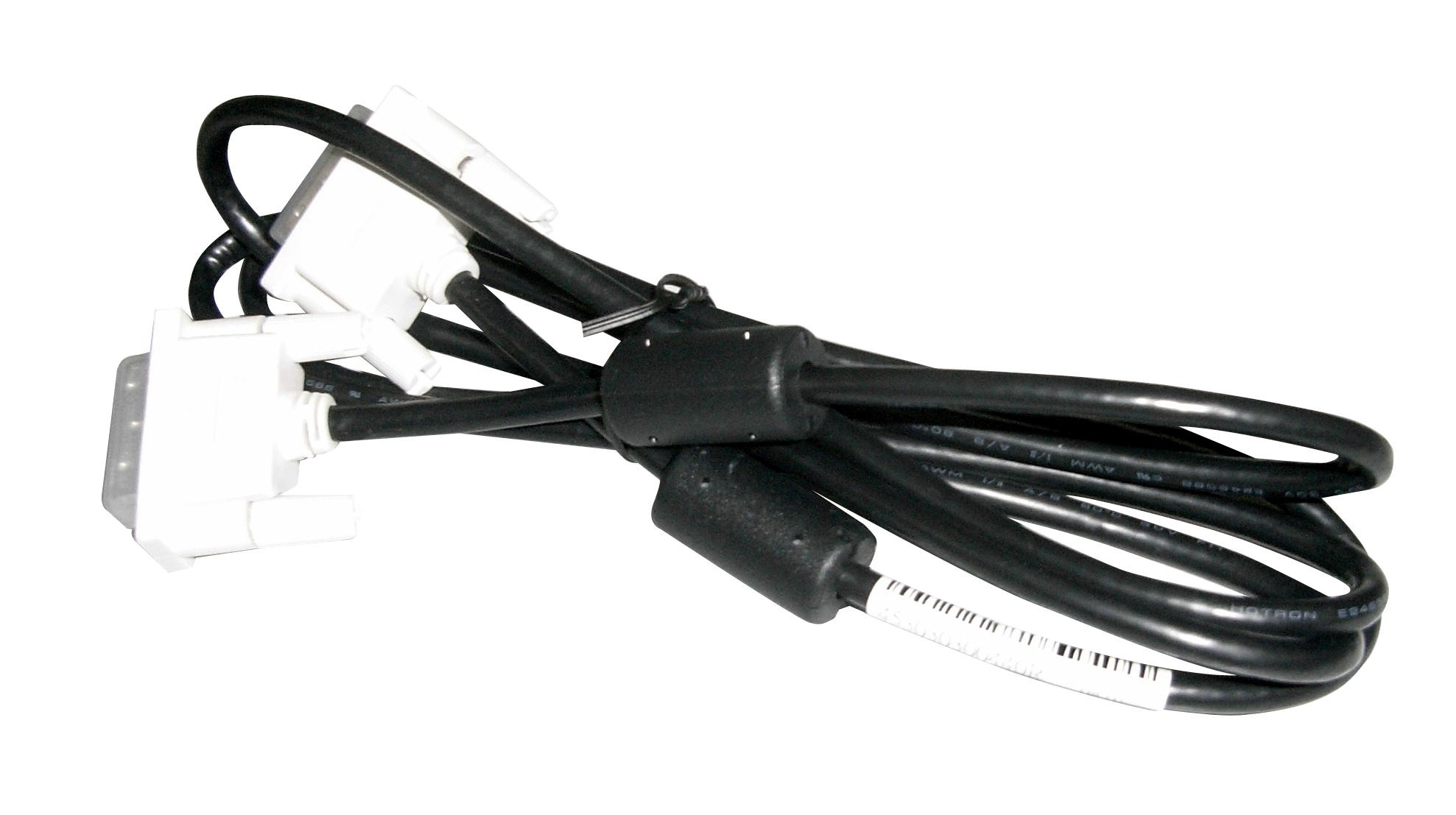

  • DVI Cable

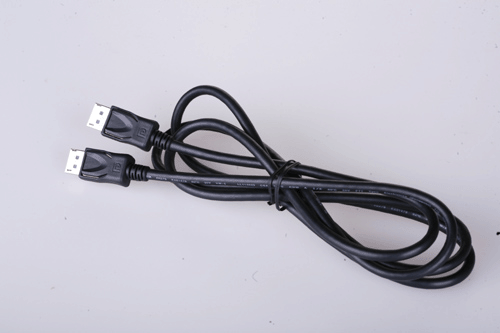

  • DP Cable

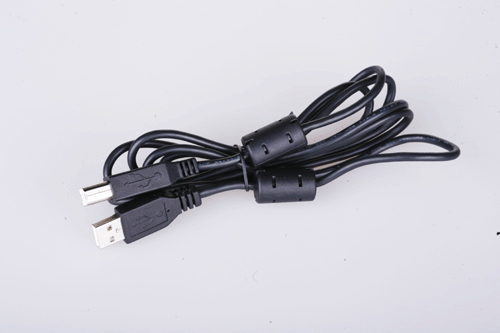

  • USB up stream cable (enables the USB ports and card reader on the monitor)

  • Drivers and Documentation media
  • Quick Setup Guide
  • Product Information Guide

Product Features

The U2410  flat panel display has an active matrix, Thin-Film Transistor (TFT), liquid crystal display (LCD). The monitor's features include:

■ 518.4 mm x 324 mm (24-inch) viewable area display measured diagonally.

■ 1920 x 1200 resolution, plus full-screen support for lower resolutions.

■ Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.

■ Tilt, swivel, rotation and height adjustment capabilities.

■ Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■ Plug and Play capability if supported by your system.

■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■ Software and documentation CD includes an information file (INF), Image color Matching File (ICM), and product documentation.

■ Security lock slot.


Identifying Parts and Features

Front View

Front View Control Panel

Label Description
1-3 Shortcut keys

*The default settings are Preset Modes Select, Brightness/Contrast Select and Input Source Select.

1 Preset Modes Select
2 Brightness/Contrast Select
3 Input Source Select
4 OSD Menu Select
5 Exit
6 Power Button (with power light indicator)

NOTE: 1~5 buttons are capacitive touch buttons, which are activated by placing your finger on the blue LED.



Back View





Back View                                                                        Back View with monitor stand



Label Description/Use
1

VESA Mounting Holes (100 mm)

(Behind attached VESA Plate)

To mount the monitor.

2 Connectors Label To indicate the positions and types of connectors.
3 Security Lock Slot To help secure your monitor.
4 Dell Soundbar Mounting Brackets To attach the optional Dell Soundbar.
5 Barcode Serial Number Label To contact Dell for technical support.
6 Regulatory Rating Label Lists the regulatory approvals.
7 Cable Management Slot To organize cables by placing them through the slot.


Side View

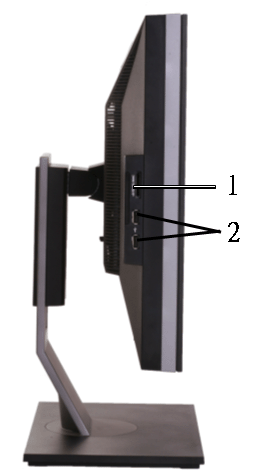

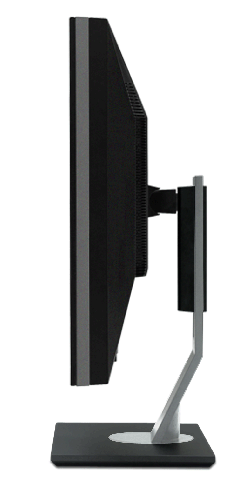

 Right View   Left View

Label Description
1 Card Reader. See Card Reader Specifications for more information.
2 USB Down Stream Ports.

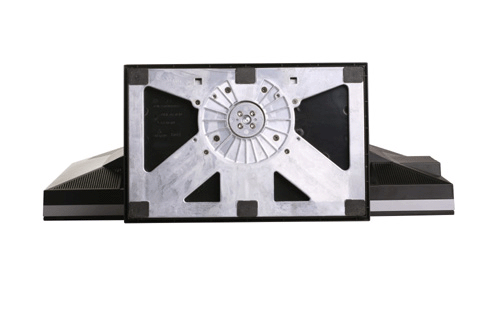

Bottom View



 Bottom View

Label Description
1 AC Power Cord Connector
2 DC Power Connector for Dell™ Soundbar
3 DisplayPort Connector
4 HDMI Connector
5 DVI Connector-1
6 DVI Connector-2
7 VGA Connector
8

Composite Video Connector

9 Component Video Connectors
10 Audio Out (Support two channel output )
11

USB Upstream Port

12 USB Downstream Port
13 Stand Lock (Use a M3 x 14 threaded screw to lock stand, screw not provided)


Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for various connectors for your monitor.

Power Management Modes

If you have VESA's DPMS compliance display card or software installed in your computer, the monitor automatically reduces its power consumption when not in use. This is referred to as Power Save Mode. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power-saving feature:

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation (with max luminance, Dell Soundbar and USB active)

Active

Active

Active

Blue

132 W (Maximum)

Normal operation Active Active Active Blue 75 W (Typical)

Active-off mode

Inactive

Inactive

Blanked

Amber

Less than 1 W

Switch off

-

-

-

Off

Less than 1 W



Activate the computer and wake up the monitor to gain access to the OSD.

NOTE: This monitor is TCO' 03 power management compatible.

NOTE: Zero power consumption in OFF mode can only be achieved by disconnecting the power cable from the monitor.


Pin Assignments

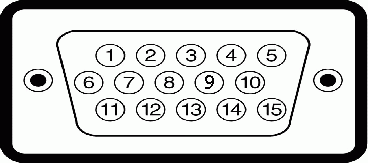

VGA Connector

Pin Number

15-pin Side of the Connected Signal Cable

1

Video-Red

2

Video-Green

3

Video-Blue

4

GND

5

Self-test

6

GND-R

7

GND-G

8

GND-B

9

Computer 5 V/3.3 V

10

GND-sync

11

GND

12

DDC data

13

H-sync

14

V-sync

15

DDC clock

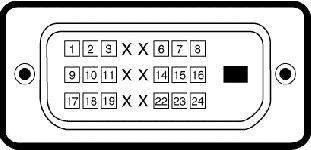

DVI Connector

Pin Number

24-pin Side of the Connected Signal Cable

1 TMDS RX2-
2 TMDS RX2+
3 TMDS Ground
4 Floating
5 Floating
6 DDC Clock
7 DDC Data
8 Floating
9 TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 Floating
13 Floating
14

+5 V/+3.3 V power

15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-

Composite Video Connector

Luma composite chroma



Component Video Connector


Pin Number 3-pin Side of the Connected Signal Cable (Cable not included)
1 Y (Luminance signal)
2 Pb (Color differential signal)
3 Pr (Color differential signal)

DisplayPort Connector

Pin Number

20-pin Side of the Connected Signal Cable

1 ML0(p)
2 GND
3 ML0(n)
4 ML1(p)
5 GND
6 ML1(n)
7 ML2(p)
8 GND
9 ML2(n)
10 ML3(p)
11 GND
12 ML3(n)
13 GND
14 GND
15 AUX(p)
16 GND
17 AUX(n)
18 HPD
19 Re-PWR
20 PWR



HDMI Connector

Pin Number

19-pin Side of the Connected Signal Cable

1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 Floating
14 Floating
15 DDC CLOCK (SDA)
16 DDC DATA (SDA)
17 GROUND
18 +5 V POWER
19 HOT PLUG DETECT




Flat Panel Specifications



Screen type

Active matrix - TFT LCD

Panel type IPS

Screen dimensions

24 inches (24-inch diagonal viewable image size)

Preset display area:



Horizontal

518.4 mm (20.41 inches)

Vertical

324.0 mm (12.75 inches)

Pixel pitch

0.27 mm x 0.27 mm

Viewing angle

178 ° (Vertical) typical, 178 ° (Horizontal) typical

Luminance output

400 cd/m ² (typ)

Contrast ratio

1000:1 (typ), 80,000:1 (Max, Dynamic Contrast on)

Faceplate coating

Antiglare with hard-coating 3H

Backlight 7 CCFL U-type system
Response Time 6 ms panel typical (Grey to Grey)

Color Gamut

110 % (typ.) *
* U2410 Color Gamut (Typical) is based on CIE1976 110 % and CIE1931 102 %.

Resolution



Horizontal scan range

30 kHz to 81 kHz (automatic)

Vertical scan range

56 Hz to 76 Hz

Maximum resolution

1920 x 1200 at 60 Hz

Video Supported Modes


Video display capabilities (DVI playback) 480i/480p/576i/576p/720p/1080i/1080p (Supports HDCP)
Video display capabilities (Composite playback) NTSC/PAL
Video display capabilities (HDMI playback) 480i/480p/576i/576p/720p/1080i/1080p
Video display capabilities (Component playback) 480i/480p/576i/576p/720p/1080i/1080p

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

Display Mode

Horizontal Frequency (kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity (Horizontal/Vertical)

VGA, 720 x 400

31.5

70.1

28.3

-/+

VGA, 640 x 480

31.5

59.9

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.3

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0 75.0 135.0 +/+
VESA, 1600 x 1200 75.0 60.0 162.0 +/+

VESA, 1920 x 1200

74.5

60.0

154.0

+/-

Electrical

The following table lists the electrical specification:

Video input signals

Analog RGB, 0.7 Volts +/- 5 %, 75 ohm input impedance

Digital DVI-D TMDS, 600 mV for each differential line, 50 ohm input impedance

HDMI, 600 mV for each differential line, 100 ohm input impedance per differential pair

DisplayPort, 600 mV for each differential line, 100 ohm input impedance per differential pair

Composite, 1 volt (p-p), 75 ohm input impedance

Component: Y, Pb, Pr are all 0.5 volt ~ 1 volt (p-p), 75 ohm input impedance

Synchronization input signals

separate horizontal and vertical,
3.3 V CMOS or 5 V TTL level, positive or negative sync.

SOG (Sync on green)

AC input voltage/frequency/current

100 VAC to 240 VAC/50 Hz or 60 Hz + 3 Hz/2.0 A (Max.)

Inrush current

120 V: 40 A (Max.)
240 V: 80 A (Max.)

Physical Characteristics

The following table lists the physical characteristics:

Connector type

  • VGA: Blue Connector
  • DVI-D: White Connector

  • DisplayPort: Black Connector

  • Composite

  • Component

  • HDMI

Signal cable type
  • D-sub: Detachable, Analog, 15 pin, shipped attached to the monitor

  • DVI-D: Detachable, Digital, 24 pin, shipped detached from the monitor

  • DisplayPort: Detachable, Digital, 20 pin, shipped detached from the monitor

  • Composite

  • Component

  • HDMI

NOTE: The composite, component and HDMI cables are not included with the monitor.

Dimensions (with stand)



Height (Compressed)

393.0 mm (15.47 inches)

Height (Extended)

493.0 mm (19.40 inches)

Width

559.7 mm (22.03 inches)

Depth

201.5 mm (7.93 inches)

Dimensions (without stand)

Height

365.1 mm (14.37 inches)

Width

559.7 mm (22.03 inches)

Depth

81.0 mm (3.18 inches)

Stand Dimensions

Height (Compressed)

340.7 mm (13.41 inches)

Height (Extended)

370.7 mm (14.59 inches)

Width

309.7 mm (12.19 inches)

Depth

201.5 mm (7.93 inches)

Weight



Weight with packaging

11.60 kg (25.64 lb)

Weight with stand assembly and cables

9.57 kg (19.93 lb)

Weight without stand assembly
 (For wall mount or VESA mount considerations - no cables)

6.50 kg (14.30 lb)

Weight of stand assembly

2.41 kg (5.30 lb)

Environmental

The following table lists the environmental limitation:

Temperature



Operating

0 ° C to 40 ° C (32 ° F to 104 ° F)

Non-Operating

Storage: -20 ° C to 60 ° C (-4 ° F to 140 ° F )
Shipping: -20 ° C to 60 ° C (-4 ° F to 140 ° F )

Humidity



Operating

10 % to 80 % (noncondensing)

Non-Operating

Storage: 5 % to 90 % (noncondensing)
Shipping: 5 % to 90 % (noncondensing)

Altitude



Operating

3,657.6 m (12,000 ft) max

Non-Operating

12,192 m (40,000 ft) max

Thermal dissipation

375 BTU/hour (maximum)
195 BTU/hour (typical)




Universal Serial Bus (USB) Interface

This monitor supports High-Speed Certified USB 2.0 interface.
Transfer speed Data Rate  Power Consumption
High speed 480 Mbps  2.5W (Max., each port)
Full speed 12 Mbps  2.5W (Max., each port)
Low speed 1.5 Mbps  2.5W (Max., each port)

USB Upstream Connector

Pin Number 4-pin Side of the connector
1 DMU
2 VCC
3 DPU
4 GND

USB Downstream Connector

Pin Number 4-Pin Side of the Signal Cable
1 VCC
2 DMD
3 DPD
4 GND

USB Ports

  • 1 upstream - rear
  • 4 downstream - 2 on rear; 2 on left side

NOTE: The monitor's 2.0 USB interface functions only if the computer is USB 2.0 compatible.

NOTE: The monitor's USB interface works only when the monitor is on or in power save mode. If you switch the monitor off and then switch it on, the attached peripherals may take a few seconds to resume normal functionality.


Card Reader Specifications

Overview

  • The Flash Memory Card Reader is a USB storage device that allows users to read and write information from and into the memory card.

  • The Flash Memory Card Reader is automatically recognized by Microsoft® Windows® 2000, Windows® XP,  Windows® Vista and Windows® 7.

  • Once installed and recognized, each separate memory card (slot) appears as a separate drive/drive letter.

  • All standard file operations (copy, delete, drag-and-drop, etc.) can be performed with this drive.

Features

The Flash Memory Card Reader has the following features:

  • Supports Microsoft® Windows® 2000, Windows® XP, Windows® Vista and Windows® 7 operating systems

  • No Microsoft® Windows® 9X support from Dell

  • Mass Storage Class device (No drivers are required under Microsoft® Windows® 2000, Windows® XP, Windows® Vista and Windows® 7)

  • USB-IF certification

  • Supports various memory card media



The following table lists the memory cards supported:

Slot Number Flash memory cards type

1

xD-Picture Card

Memory Stick Card (MS)/High Speed Memory Stick (HSMS)/Memory Stick Pro Card (MS PRO)/Memory Stick Duo (with Adapter)

Secure Digital Card (SD)/Mini Secure Digital (with Adapter)/TransFlash Card (with Adapter)

MultiMedia Card (MMC)/Reduced Size MultiMedia Card (with Adapter)

Maximum Card Capacity Supported by the U2410 card reader

Card type Support Specification Memory Card Spec Version Support Maximum Capacity by Spec U2410
MS Memory Stick Standard Format Specification 1.43 128 MB Supported
MSPRO Memory Stick Pro Standard Format Specifications 1.02 32 GB Supported
MSDuo Memory Stick Duo Standard Format Specifications 1.10 128 MB/32 GB Supported
MSDuo-HG Memory Stick Duo Standard Format Specifications 1.01 32 GB Supported
xD xD Picture Card Specification 1.2 2 GB Supported
SD SD Memory Card Specifications 2.0 32 GB Supported
MMC MultiMedia Card System Specification 4.2 32 GB Supported



NOTE: MSPRO includes MSPRO Duo and MS Micro.

NOTE: xD includes TypeM and TypeH.

NOTE: SD includes HS-SD, MiniSD and SD Micro. SD v2.0 spec includes SDHC.

NOTE: MMC includes MMCPlus, RS-MMC, MMC Mobile and MMC micro.

General

Connection type USB 2.0 High Speed Device (USB Full Speed Device compatible)
Supported OS Microsoft® Windows® 2000, Windows® XP, Windows® Vista and Windows® 7

Performance

Transfer Speed Read: 480 Mb/s (max.)
  Write: 480 Mb/s (max.)

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. If required, the user can select different settings, but in most cases monitor installation is automatic.


LCD monitor Quality and Pixel Policy


During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.

Maintenance Guidelines

Caring for Your Monitor

WARNING: Read and follow the Safety Instructions before cleaning the monitor.

WARNING: Before cleaning the monitor, unplug the monitor from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:


Back to Contents Page
