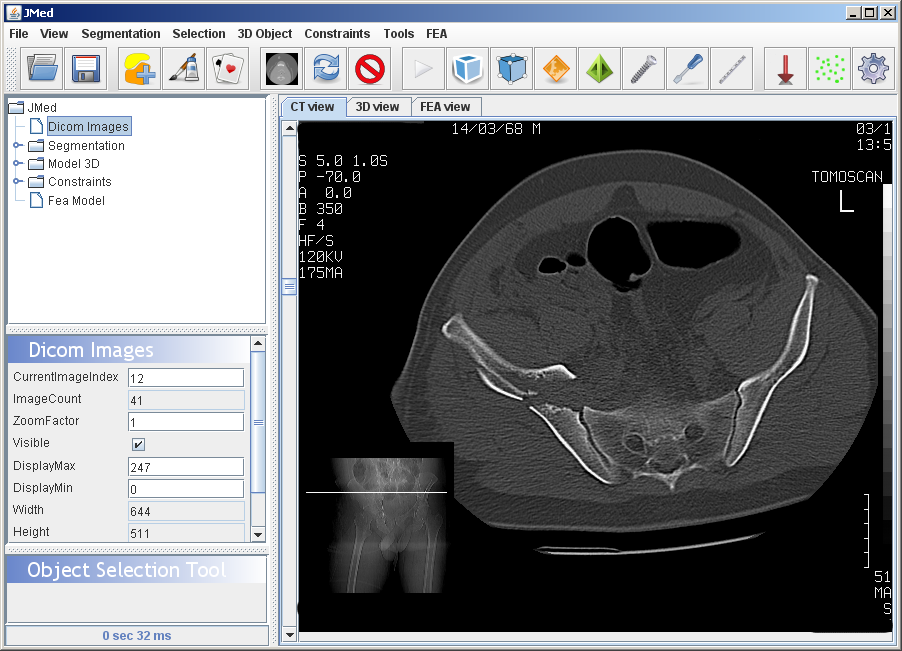

CT View tab. You can also scroll through all the slices.

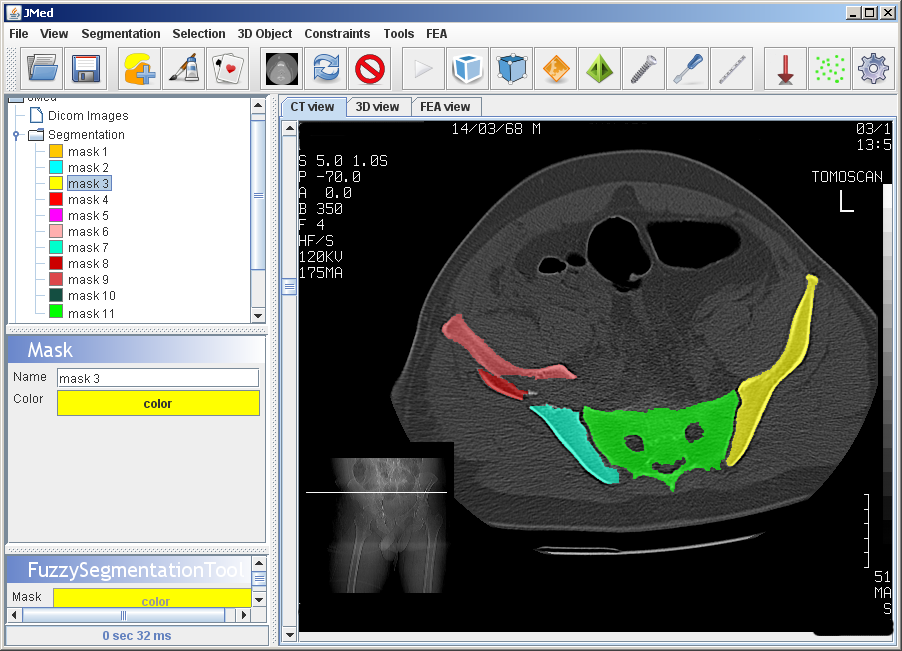

Segmentation. During the segmentation process the different bone fragments are located and marked with different colors.

3D view tab. Here you can view and rotate the 3D scene. The patient suffered a high impact fracture on his left side. This resulted in 4 major fragments and 3 smaller ones in the front.

Fracture reduction. The fragments are moved and rotated back to their healthy positions.

Screws and plates can be inserted into the sutrgical plan.

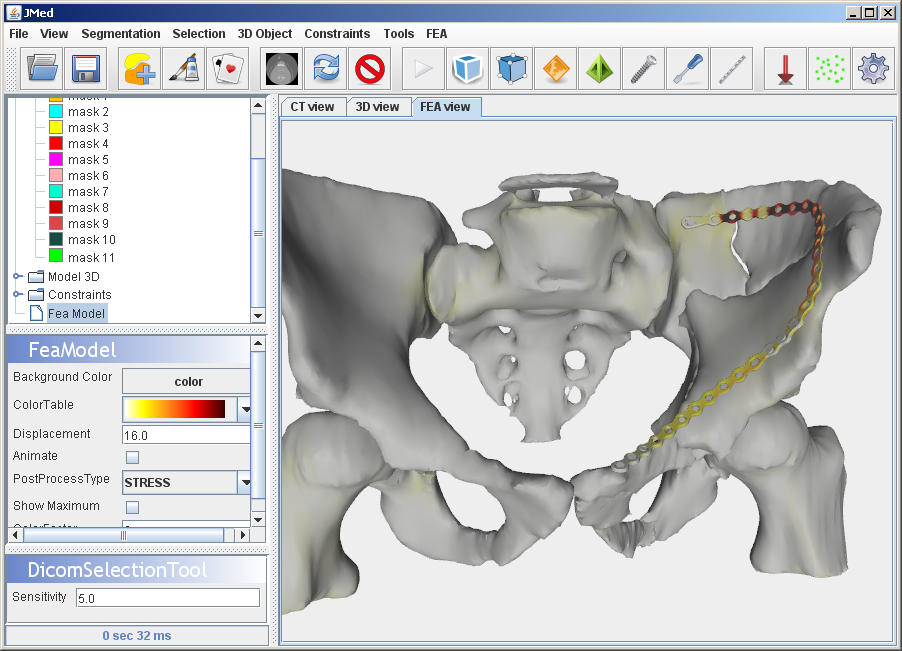

Stress results. The stress inside the material is presented on a white to red color palette.

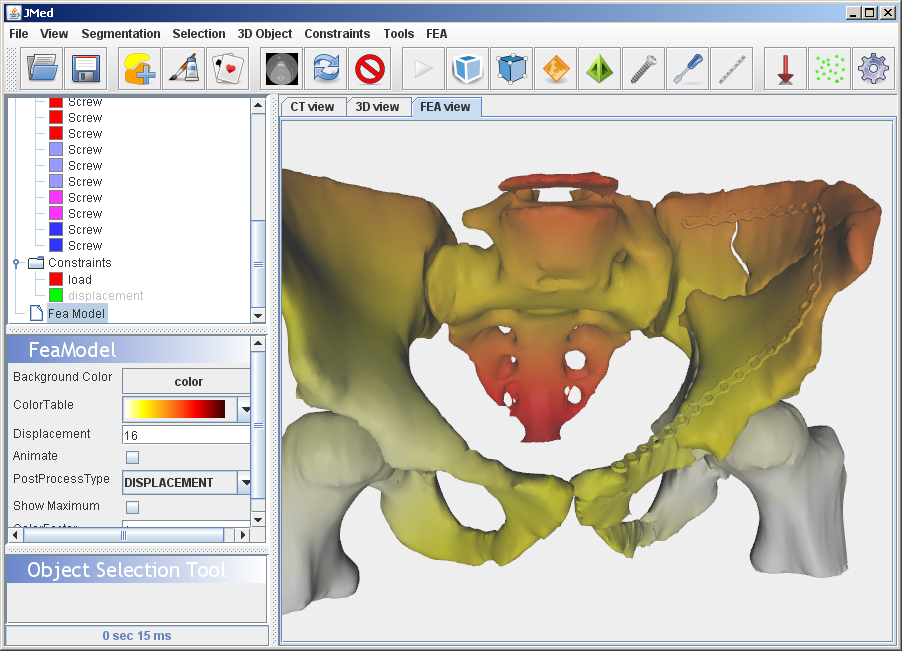

Deformation results. The ammount of deformation is encoded in the color information.
