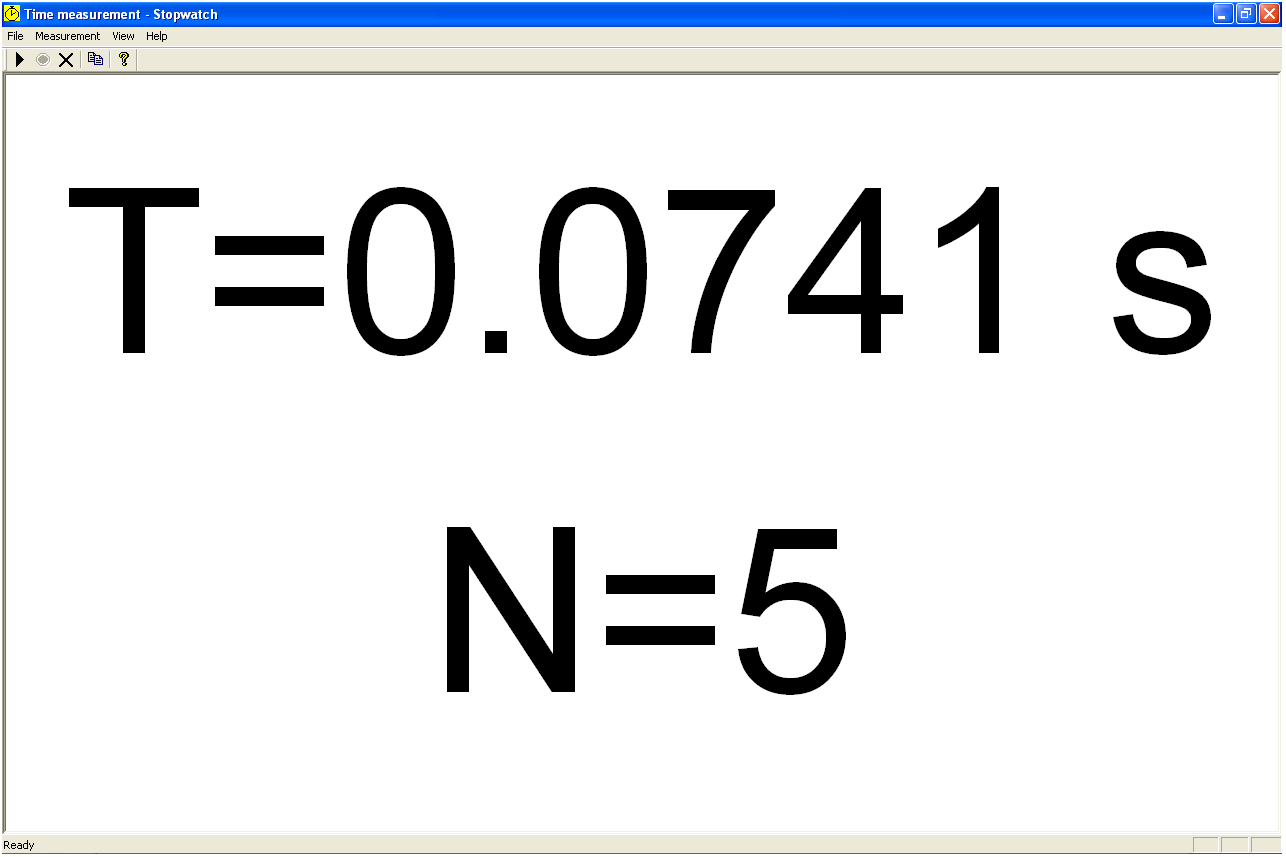

High resolution stopwatch for cents

See all education development projects or see all scientific/industrial development projects


Open-source software

WARNING: Download and run the software at your own risk. No responsibility for any loss, damage and/or adverse effect is granted.
No support is provided.

Visual C++ source code
Windows executable

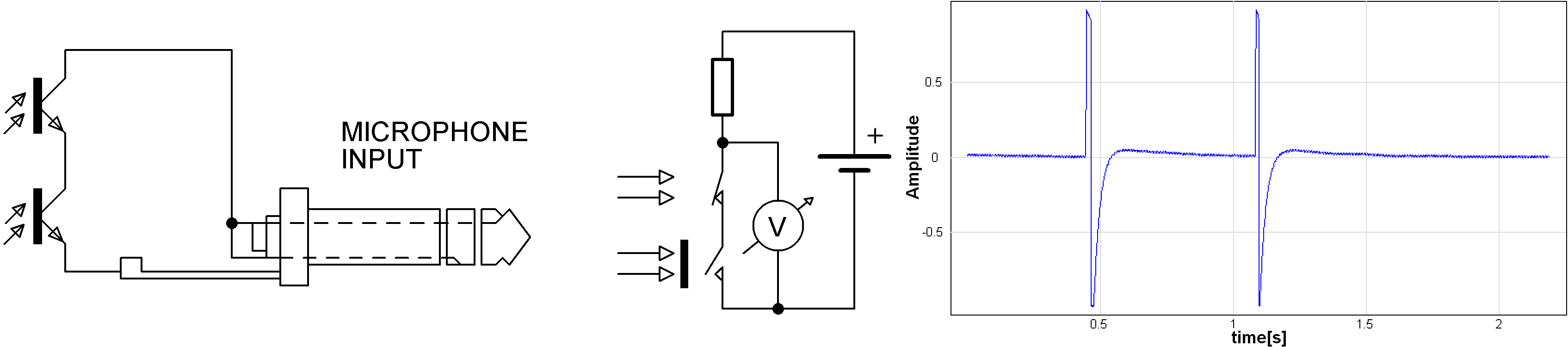

Connecting the sensors to the microphone input

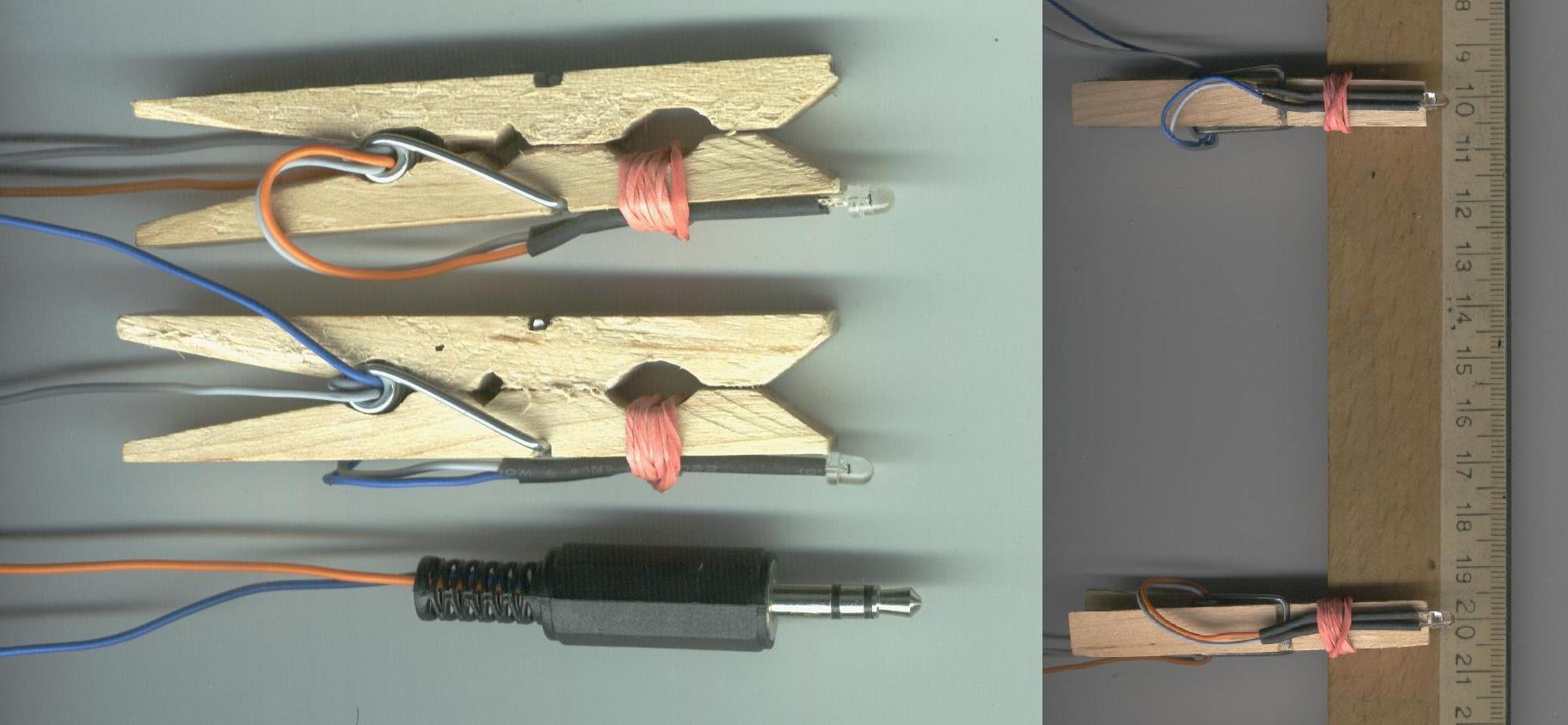

Ambient light phototransistors (TEPT4400) connected to the 3.5mm jack.
The microphone input of the sound card should be used. Heat shrink tubes are used to isolate the wires from directly touching them.
Farnell ordering pages: 3,5mm jack plug, TEPT4400, OFT-5301 (lowest cost infrared phototransistor)

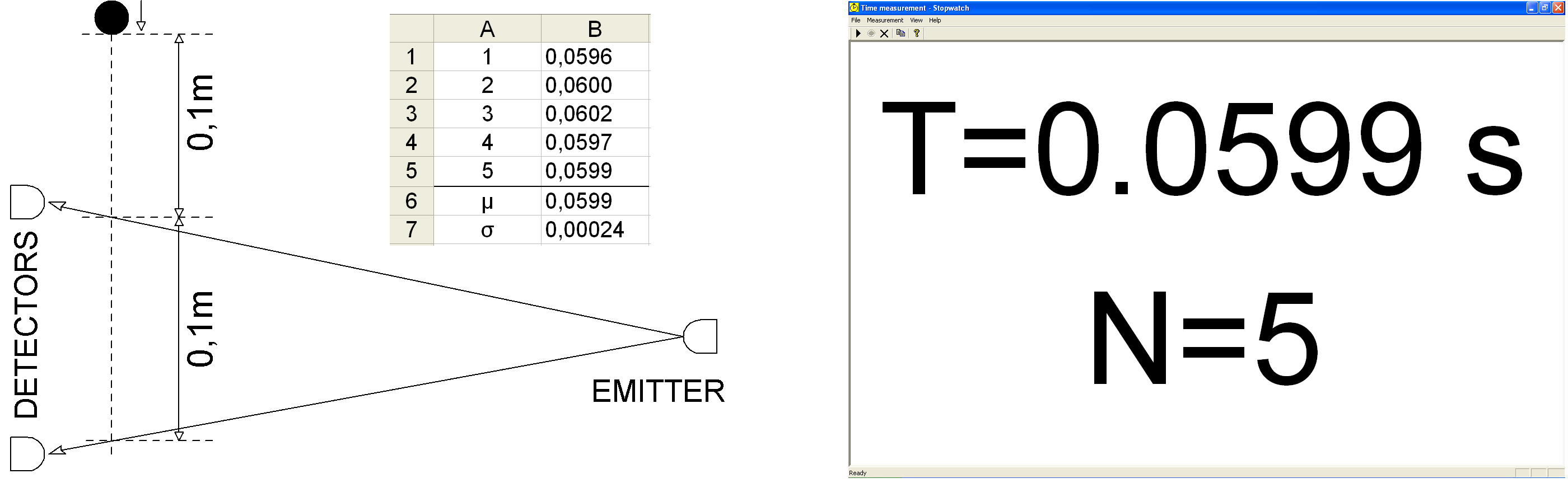

Example experiment

The light source can be a flashlight, DC or mains lamp, no laser pointers are needed
